Hall Effect Current Sensor For Measuring AC DC Pulsed And Mixed Current

Place of Origin : Jiangsu, China (Mainland)

Brand Name : chieful

Model Number : C600E2

MOQ : 1 Piece

Price : Negotiable

Usage : Magnetic Sensor

Theory : Hall Sensor

Output : Analog Sensor

color : black

weight : 78g

Diameter : 28mm

Certificate : CE ,RoHS,ISO9001

Warranty : 5 years

Selling Units : Single item

Single package size  : 23X18X7 cm

Single gross weight : 0.078 kg

Package Type : packing in bubble

Contact Now

Hall Effect Current Sensor For Measuring AC DC Pulsed And Mixed Current
Product Description

Hall effect current sensor CS600E2

Open loop current sensor based on the principle of Hall-effect. It can be used for

measuring AC,DC,pulsed and mixed current.

Electrical characteristics
Type CS100E2 CS200E2 CS300E2 CS400E2 CS500E2 CS600E2
IPN Primary nominal input current 100 200 300 400 500 600 A
IP Measuring range of primary current 0~±300 0~±600 0~±900 0~±900 0~±900 0~±900 A
VOUT Nominal output voltage 4±1% V
VC Supply voltage ±15(±5%) V
IC Current consumption VC=±15V <20 mA
VD Insulation voltage AC/50Hz/1min 2.5 kV
εL Linearity <1 %FS
VO Offset voltage TA=25℃ <±25 mV
VOM Residual voltage IPN→0 <±20 mV
VOT Thermal drift of V0 IP=0 TA=–25~+85℃ <±1 mV/℃
TR Response time ≤3 μs
f Frequency bandwidth(-3dB) DC~20 kHz
TA Ambient operating temperature –25~+85 ℃
TS Ambient storage temperature –40~+100 ℃
RL Load resistance ≥10 KΩ
Standard Q/3201CHGL02-2007

Hall Effect Current Sensor For Measuring AC DC Pulsed And Mixed Current

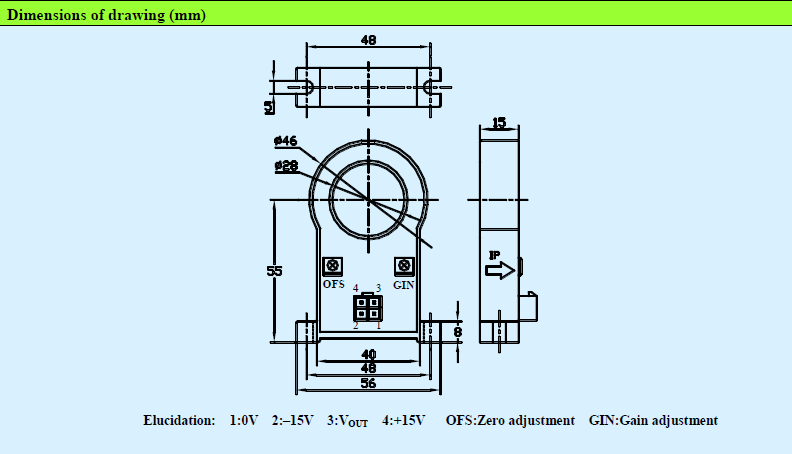

Detailed Images
Hall Effect Current Sensor For Measuring AC DC Pulsed And Mixed Current
Hall Effect Current Sensor For Measuring AC DC Pulsed And Mixed Current
Hall Effect Current Sensor For Measuring AC DC Pulsed And Mixed Current
About us

CHIEFUL offers a wide range of current and voltage transducers in the portfolio. And our transducer can be designed according to the specific demands.The company explore foreign markets actively, our products have been sold to the United Kingdom, Germany, Denmark, France, Italy, Sweden,Turkey, Israel, South Korea, India etc.

Exhibition
Logistics packaging
Hall Effect Current Sensor For Measuring AC DC Pulsed And Mixed Current
Hall Effect Current Sensor For Measuring AC DC Pulsed And Mixed Current
Hall Effect Current Sensor For Measuring AC DC Pulsed And Mixed Current
Hall Effect Current Sensor For Measuring AC DC Pulsed And Mixed Current
FAQ

Q1: Are you a factory?
A:We are a factory setted up more than 17 years and export more than 10years.

Q2: When is the delivery date?
A: 7-10 working days in general.

Q3: Could you send me a quotation?
A: Sure.

Q4: How about the after service?
A: Five years warranty.

Q5: What about the shipping package?
A: Anti-static package and carton.
