Reliable Hall Open Loop Current Transducer For Welding Machine CS200N

Product Categories
Nanjing Chieful Science & Technology Co., Ltd.
Contact Now

Reliable Hall Open Loop Current Transducer For Welding Machine CS200N

Place of Origin : China (Mainland)

Brand Name : chieful

Model Number : CS200N

MOQ : 1-499 Pieces

Price : Negotiable

Usage : Magnetic Sensor

Theory : Hall Sensor

Output : Analog Sensor

color : black

weight : 73g

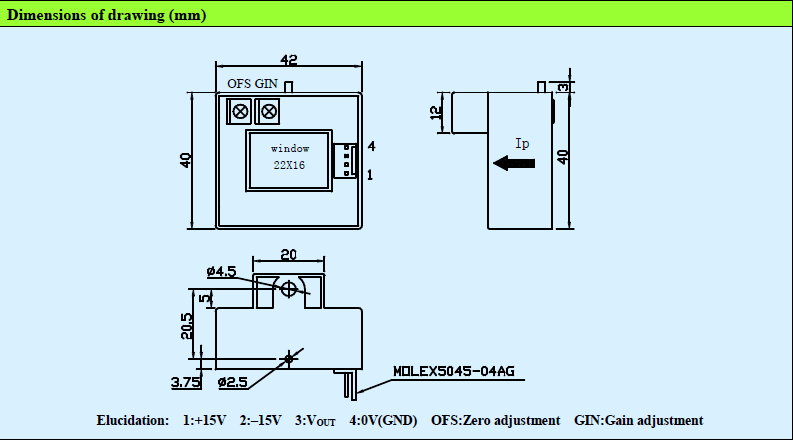

window size : 22*16mm

Application : welding machine

Product name : hall effect current sensor CS200N

Type : open loop

Certificate : CE ,RoHS,ISO9001

Capacity : 10000pcs/month

Warranty : 5years

Selling Units : Single item

Single package size  : 23X18X7 cm

Single gross weight : 0.077 kg

Contact Now

Product Description

dismountable hall effect current Sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC currents.

hall effect current sensor CS200N

Electrical characteristics
Type CS50N CS100N CS200N CS300N CS400N CS500N
IPN Primary nominal input current 50 100 200 300 400 500 A
IP Measuring range of primary current 0~±100 0~±200 0~±400 0~±600 0~±800 0~±900 A
VOUT Nominal output voltage 4±1% V
VC Supply voltage ±15(±5%) V
IC Current consumption VC=±15V <20 mA
VD Insulation voltage AC/50Hz/1min 2.5 kV
εL Linearity <1 %FS
VO Offset voltage TA=25℃ <±25 mV
VOM Residual voltage IPN→0 <±20 mV
VOT Thermal drift of V0 IP=0 TA=–25~+85℃ <±1 mV/℃
TR Response time ≤3 μs
f Frequency bandwidth(-3dB) DC~20 kHz
TA Ambient operating temperature –25~+85 ℃
TS Ambient storage temperature –40~+100 ℃
RL Load resistance ≥10 KΩ
Standard Q/320115QHKJ01-2013

Applications

· AC variable speed drives
· Static converters for DC motor drives
· Variable speed drives
· Power supplies for welding applications
· Battery supplied applications
· Uninterruptible Power Supplies (UPS)
· Switched Mode Power Supplies (SMPS)

Reliable Hall Open Loop Current Transducer For Welding Machine CS200N

About us

CHIEFUL offers a wide range of current and voltage transducers in the portfolio. And our transducer can be designed according to the specific demands.The company explore foreign markets actively, our products have been sold to the United Kingdom, Germany, Denmark, France, Italy, Sweden,Turkey, Israel, South Korea, India etc.

Exhibition

Logistics packaging

FAQ

Q1: Are you a factory?
A:We are a factory setted up more than 17 years and export more than 10years.

Q2: When is the delivery date?
A: 7-10 working days in general.

Q3: Could you send me a quotation?
A: Sure.

Q4: How about the after service?
A: Five years warranty.

Q5: What about the shipping package?
A: Anti-static package and carton.
