Current Transducer

Closed loop current sensor based on the principle of Hall-effect. It can be used formeasuring AC,DC,pulsed and mixed.

For the electronic measurement of currents : DC, AC, pulsed... with a galvanic isolation between the primary circuit ( high power ) and the secondary circuit ( electronic circuit ) .

Applications

* AC variable speed drives and servo motor drives

* Static converters for DC motor drives

* Battery supplied applications

* Uninterruptible power supplies (UPS)

* Switched mode power supplies ( SMPS )

* Power supplies for welding applications

hall effect current transducer CSM500LTB

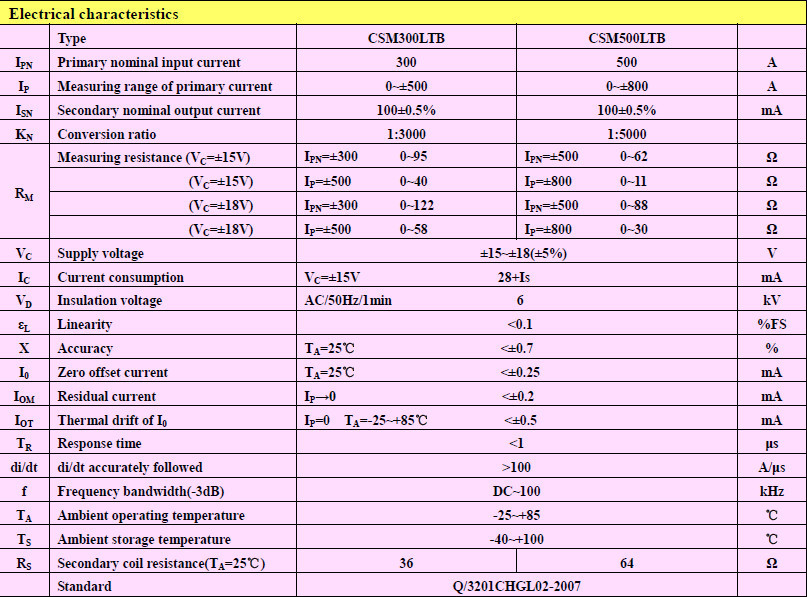

Electrical characteristics
Type CSM300LTB CSM500LTB CSM300LT
IPN Primary nominal input current 300 500 300 A
IP Measuring range of primary current 0~±500 0~±800 0~±500 A
ISN Secondary nominal output current 2100 50 100 150 mA
KN Conversion ratio 1:2000
RM Measuring resistance (VC=±15V/ IPN) 504(max) 237(max) 100(max) 56(max) Ω
(VC=±15V/ IP) 327(max) 147(max) 56(max) 21(max) Ω
(VC=±18V/ IPN) 619(max) 293(max) 130(max) 75 (max) Ω
(VC=±18V/ IP) 397(max) 148(max) 75(max) 31(max) Ω
VC Supply voltage ±12~±18(±5%) V
IC Current consumption VC=±15V 20+Is mA
VD Insulation voltage AC/50Hz/1min 6 kV
εL Linearity <0.1 %FS
X Accuracy TA=25℃ <±0.7 %
I0 Zero offset current TA=25℃ <±0.25 mA
IOM Residual current IP→0 <±0.2 mA
IOT Thermal drift of I0 IP=0 TA=-25~+85℃ <±0.65 mA
TR Response time <1 μs
di/dt di/dt accurately followed >100 A/μs
f Frequency bandwidth(-3dB) DC~100 kHz
TA Ambient operating temperature -25~+85 ℃
TS Ambient storage temperature -40~+100 ℃
RS Secondary coil resistance TA=25℃ 22 Ω
Standard Q/3201CHGL02-2016
